Project Feature: EM-B-3500 Electric Melting Furnace – Ordered By Pennsylvania Heavy Equipment Manufacturer
Earlier this year, a heavy machinery manufacturer based in Pennsylvania contacted us through our website, looking for a high-efficiency solution to support their aluminum casting operations. Their goal was clear: simplify maintenance, reduce energy consumption, improve melt quality, and streamline maintenance—all without compromising safety or uptime. The initial connection was made at an industry event, where their team visited our booth and discussed the challenges they were facing with their existing melting setup. That conversation sparked a deeper technical exchange, and in the weeks that followed, our engineers worked closely with their production team to evaluate options and recommend the best-fit solution for their workflow and output goals.
After evaluating their production goals and facility constraints, our team recommended the EM-B-3500 Electric Square Crucible Melting Furnace as the ideal solution. Its high melting and holding capacity, energy-efficient design, and smart control system aligned perfectly with the client’s need for reliable, low-maintenance aluminum melting.
👉 Our client contacted us through a request for information form. You can ask our specialists about the EM-B Series.
Every Furnace We Build Is a Solution
Consultation & Furnace Selection
Throughout the entire process, our team prioritized clear communication, technical support, and patience. From the first conversation at the industry event to the final configuration approval, we took the time to understand the client’s challenges and walk them through every detail—no pressure, no shortcuts. Our engineers answered questions thoroughly, adjusted specifications as needed, and ensured the client felt confident at every step. This collaborative, consultative approach is core to how we work: we don’t just deliver equipment—we build long-term trust through responsive service and expert guidance. In our discussions, we found out that the furnace position was going to be an issue and that the furnace had to be designed with all the heating rods removable only from two sides.
Engineering the Right Solution

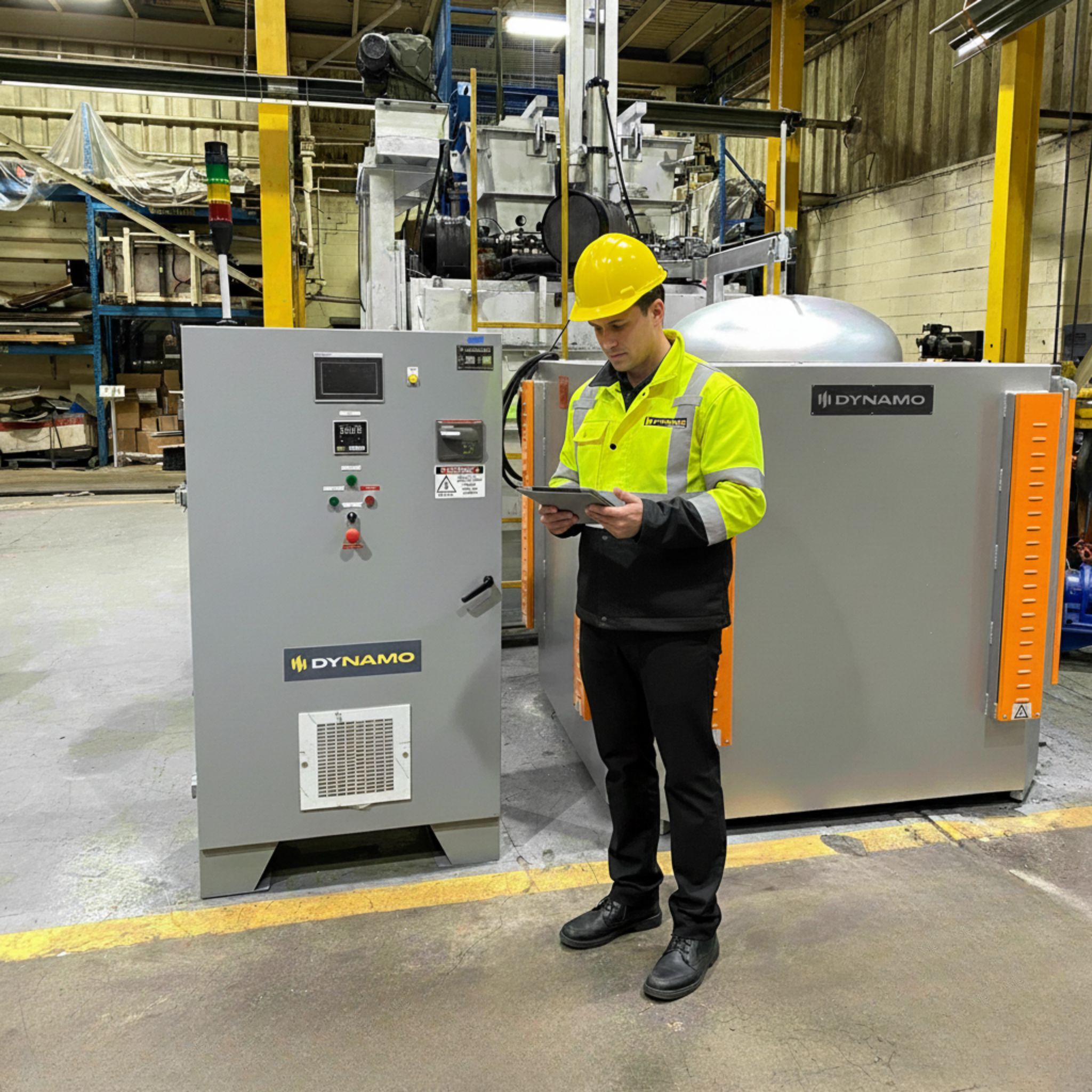

After reviewing their production needs and facility layout, our engineering team recommended the EM-B-3500 Electric Square Crucible Melting Furnace—a robust, solid-state electric resistance furnace designed for high-volume aluminum melting with minimal turbulence and maximum thermal efficiency.
Key Features Included:
- Silicon carbide heating rods for long life and consistent performance
- Easy rod replacement without removing the crucible
- Removable from two sides only (as per this client's specific requirements)
- Large 3500 lb holding capacity
- High 880 lbs/h melting rate
- 480V / 60Hz / 3-phase power, drawing 250 amps

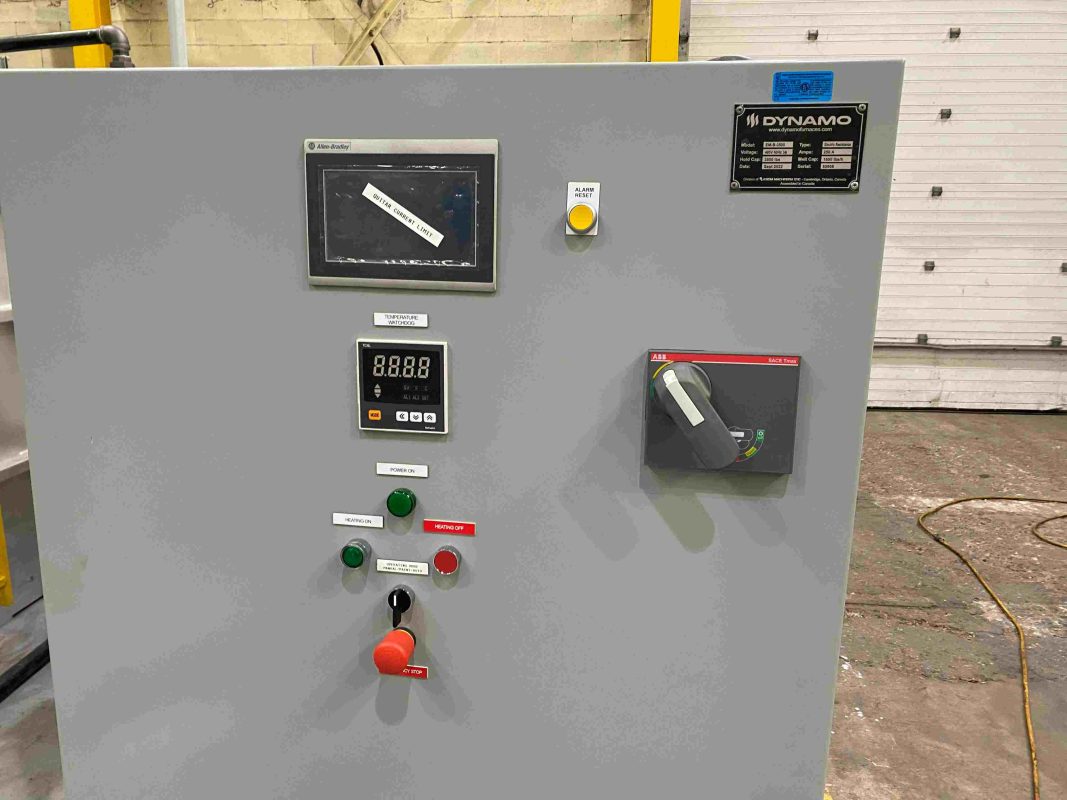

- PLC control system with a large color HMI touchscreen
- Remote monitoring and Industry 4.0 integration (optional)
👉 These features make the EM-B-3500 an ideal solution for aluminum melting foundries, where precision, simplicity, and uptime are critical. For more information about our EM-B Series square crucible electric melting furnace visit the product page
Design and Assembly

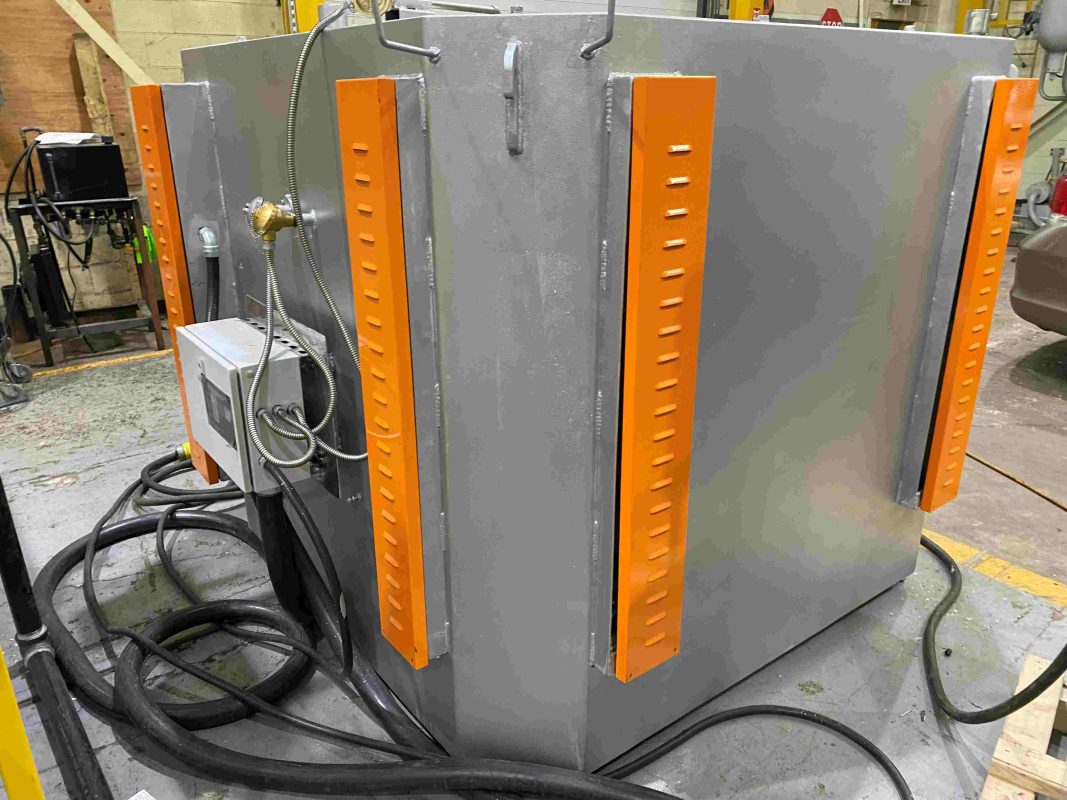

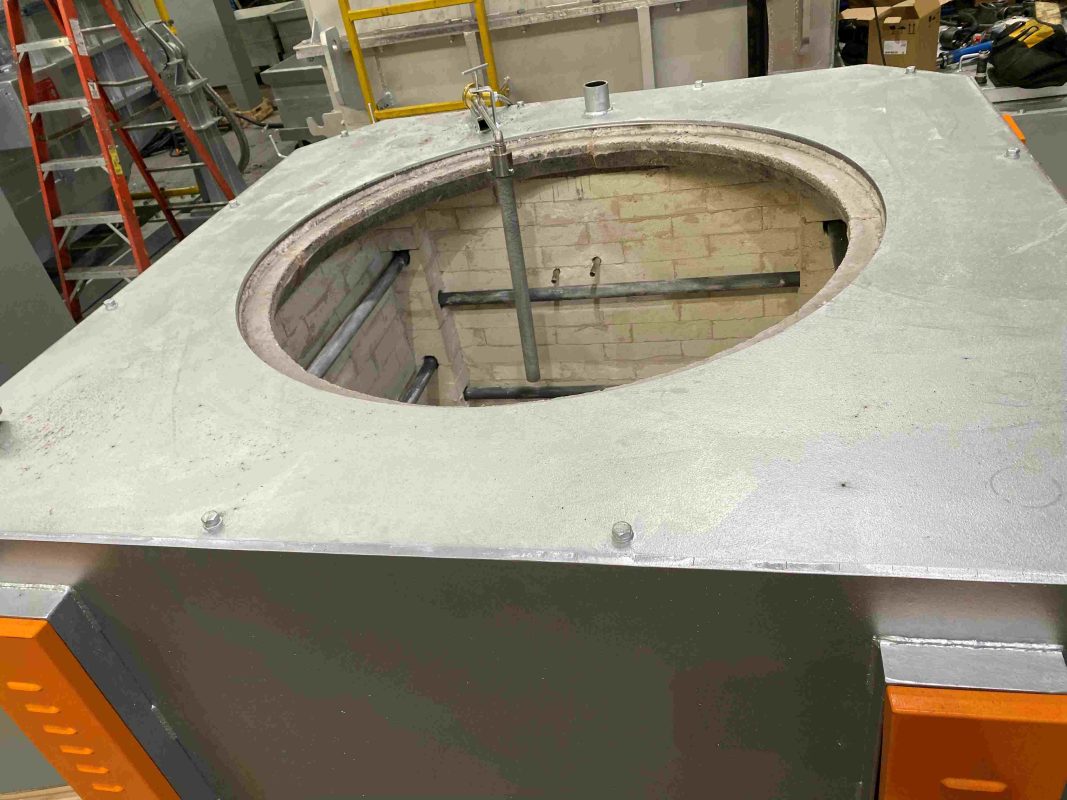

Once the configuration was approved, our team began fabrication at our Cambridge facility. The furnace shell was built using reinforced steel and high-grade refractory insulation, ensuring both durability and thermal containment. The heating system was assembled with 12 silicon carbide rods, arranged for optimal heat distribution and easy access.

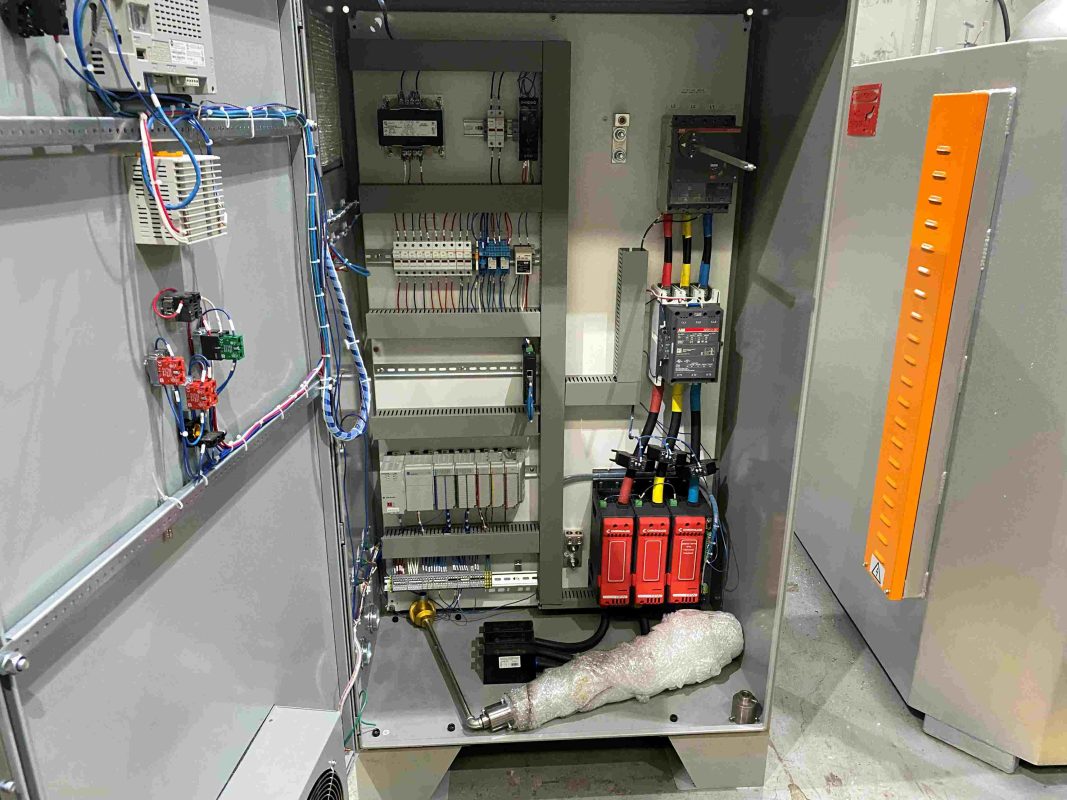

Electrical panels were wired to meet UL standards, and the control system was programmed for real-time diagnostics, temperature control, and shift performance tracking.
Next: Quality Assurance & Documentation
Before shipment, the EM-B-3500 underwent a full factory acceptance test (FAT), including:
Melting rate verification
Electrical load testing
Safety system validation
PLC and HMI calibration
- UL Certification
All results were documented and included in the shipment package, along with wiring diagrams, maintenance manuals, and certification records for compliance and future support.
In the next phase, our engineers test, inspect and pre-commission this melting furnace. The story of the operation will be brought to you.
