New Project Begins: Order, Consultation, Engineering, and Assembly of the GM‑B‑2200 Tilting Crucible Melting Furnace
The story of the GM‑B‑2200 Gas‑Fired Aluminum Tilting Crucible Melting Furnace began when a mid‑sized foundry in Wisconsin reached out to us after months of struggling with an outdated melting system. Their existing furnace—an older, manually ladled unit—was becoming a bottleneck in their aluminum casting workflow. Melt times were unpredictable, fuel consumption was rising, and the manual pouring process introduced safety risks and inconsistency in their castings.
They discovered us while researching gas‑fired aluminum melting furnaces, specifically looking for a tilting crucible melting furnace that could improve operator safety, reduce dross formation, and deliver clean molten aluminum with stable temperature control. Our GM‑B Series Aluminum Tilting Crucible Melting Furnaces stood out because they were engineered for continuous melting, smooth hydraulic tilting, high thermal efficiency, and low‑oxidation melting environments—all critical for their production needs.
Their first message was clear: “We need a reliable tilting crucible furnace that can melt aluminum efficiently and pour safely without the downtime we’re dealing with now.”
That inquiry marked the beginning of the GM‑B‑2200 project.
Introducing the GM‑B‑2200 — Gas‑Fired Aluminum Tilting Crucible Melting Furnace
The GM‑B‑2200, part of the GM‑B Series, is a gas‑fired aluminum crucible melting furnace designed for foundries, die‑casting plants, and aluminum casting shops that require clean molten aluminum with consistent metallurgical quality. Its hydraulic tilting mechanism allows operators to pour molten aluminum safely and precisely, eliminating the risks associated with manual ladling.
To ensure strong keyword coverage, the GM‑B‑2200 is engineered for:
Aluminum melting and holding
Gas‑fired crucible melting
Hydraulic tilting for safe pouring
Low‑oxidation melting environments
High thermal efficiency and reduced fuel consumption
Long crucible life
Stable temperature control
Continuous melting cycles
For the Wisconsin foundry, the GM‑B‑2200 represented a major operational upgrade—an opportunity to stabilize their melt quality, reduce fuel costs, and significantly improve operator safety.
Get A Free Quote Today
Understanding Their Application — The Consultation Phase
Once the Wisconsin foundry confirmed their interest, our engineering team scheduled a detailed consultation. Their operation required a furnace that could melt aluminum quickly, maintain a stable holding temperature during long casting cycles, and pour safely into molds and ladles without manual handling.
During the consultation, we reviewed their daily melt volume, alloy types, casting schedule, and fuel usage. Their existing furnace struggled with temperature fluctuations, which caused inconsistent casting quality and increased scrap rates. They also emphasized the need for a hydraulic tilting system to eliminate manual pouring and reduce operator fatigue.
We evaluated their gas supply, ventilation system, and floor layout to ensure the GM‑B‑2200 would integrate seamlessly into their melt shop. The consultation confirmed that the GM‑B‑2200’s gas‑fired crucible design, high‑efficiency burner system, and smooth hydraulic tilting mechanism were the ideal solution for their workflow.
Engineering Review — Designing the Furnace for Their Workflow
After the order was confirmed, our engineering team began customizing the GM‑B‑2200 to match the foundry’s exact requirements. Although the GM‑B Series follows a standardized design philosophy, every installation is tailored to the customer’s workflow, alloy range, and production schedule.
The engineering phase included a full thermal analysis of the furnace chamber, ensuring the burner system would deliver uniform heat distribution around the crucible. We modeled the heating curves for their aluminum alloys, ensuring the furnace could reach melting temperature quickly while maintaining a stable holding temperature during casting.
Our engineers also designed the control system layout, including the PLC logic, HMI screens, temperature controllers, and safety interlocks. The hydraulic tilting system was engineered for smooth, controlled pouring, with adjustable tilt speed and precise positioning.
Mechanical engineering focused on the furnace shell, insulation layers, refractory lining, burner mounting, and crucible support system. Every component was designed for durability, thermal efficiency, and ease of maintenance.
Throughout this phase, we exchanged drawings, 3D models, and layout proposals with the foundry’s engineering team. Adjustments were made to accommodate their gas supply, ventilation system, and material flow patterns. By the end of engineering, the GM‑B‑2200 had evolved into a fully customized melting system built specifically for their operation.
Fabrication — Building the GM‑B‑2200 from the Ground Up
With engineering finalized, fabrication began. The furnace shell was constructed from high‑strength steel, welded and reinforced to withstand years of thermal cycling. The refractory lining was installed in multiple layers, each selected for its thermal insulation properties and resistance to aluminum corrosion. The burner system was mounted with precise alignment to ensure efficient combustion and low oxidation.
The hydraulic tilting mechanism was assembled and tested independently before integration. The control panel was built with industrial‑grade components, wired to the PLC, and programmed with the temperature control and tilting logic developed during engineering.
By the time fabrication was complete, the GM‑B‑2200 had taken shape as a fully engineered gas‑fired aluminum melting furnace—ready for final assembly.
Assembly — Integrating All Systems into a Complete Furnace

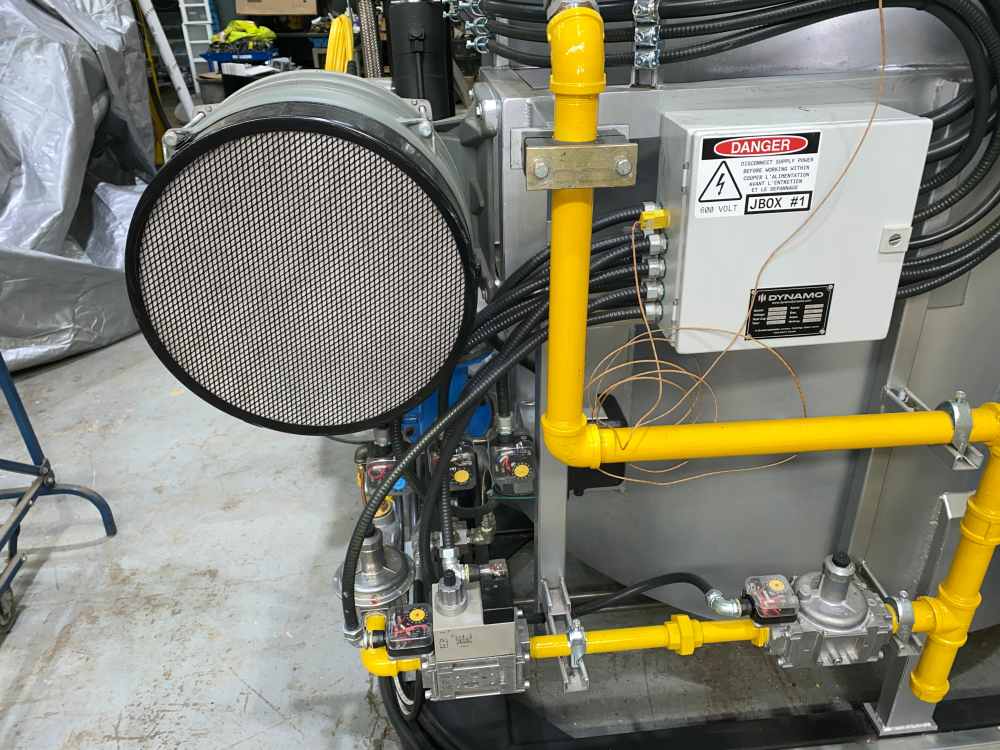

During assembly, the furnace shell, refractory lining, burner system, hydraulic tilting mechanism, control panel, and crucible support system were integrated into a complete melting system. The burner was connected to the gas train, the thermocouples were calibrated, and the hydraulic system was filled, tested, and adjusted for smooth operation.
The furnace was inspected for structural integrity, gas tightness, electrical continuity, and safety compliance. Every component was verified to ensure the furnace would perform reliably once installed in Wisconsin.
By the end of assembly, the GM‑B‑2200 stood as a fully built tilting crucible melting furnace—ready for testing, pre‑commissioning, and shipment.
Summary
Phase 1 captures the complete journey—from the moment the Wisconsin foundry discovered us, to the engineering, fabrication, and assembly of their GM‑B‑2200 Gas‑Fired Aluminum Tilting Crucible Melting Furnace.
