Engineering, and Assembly of the GM‑A330 Copper Crucible Melting Furnace for Chicago Manufacturer
The story of the GM‑A330 Copper Crucible Melting Furnace began when a precision components manufacturer in Chicago reached out to us with a challenge that had been slowing down their production for years. Their operation relied heavily on copper melting for casting small electrical components, bus bars, and custom copper alloys. But their existing furnace—an aging, inefficient unit—was struggling to keep up with demand. Melt times were inconsistent, energy consumption was rising, and maintenance downtime was becoming a weekly occurrence.
They found us after researching gas‑fired copper melting furnaces, specifically looking for crucible‑based melting systems that offered stable temperature control, low oxidation, and high thermal efficiency. Our GM‑A‑BRS Series Copper Crucible Melting Furnaces stood out because they were engineered for continuous melting, clean molten copper quality, and long crucible life—all critical for their production environment.
Their first message was straightforward: “We need a reliable copper melting furnace that can run every day, with predictable melt quality and minimal downtime.”
That inquiry marked the beginning of the GM‑A330 project.
Introducing the GM‑A330 — Gas‑Fired Copper Crucible Melting Furnace
The GM‑A330 is part of the GM‑A‑BRS Series, a line of gas‑fired copper crucible melting furnaces designed for foundries, casting shops, electrical component manufacturers, and metalworking facilities that require clean, consistent molten copper.
To ensure strong keyword coverage, here are the core attributes of the GM‑A‑BRS Series:
Copper crucible melting furnace
Gas‑fired melting system
High‑efficiency burner design
Low‑oxidation melting environment
Stable temperature control
Long crucible life
Compact footprint for small and medium casting shops
Ideal for copper, brass, bronze, and specialty copper alloys
Designed for continuous melting and holding
High thermal efficiency and reduced fuel consumption
The GM‑A330 model selected by the Chicago manufacturer offered the perfect balance of melting capacity, energy efficiency, and operational simplicity. It was engineered to deliver clean molten copper with minimal dross formation—critical for their precision casting applications.
Get A Free Quote Today
Initial Consultation — Understanding Their Application and Constraints
Once the Chicago manufacturer confirmed their interest, our engineering team scheduled a detailed consultation. Their operation required:
A furnace capable of melting copper quickly and consistently
Stable holding temperature for extended casting cycles
Low oxidation to maintain alloy purity
A compact footprint due to limited floor space
Integration with their existing ladles and pouring workflow
A system that minimized operator intervention
We reviewed their daily melt volume, alloy types, casting schedule, and energy usage. Their old furnace was consuming excessive gas and producing inconsistent melt quality. The GM‑A330’s gas‑fired crucible design and high‑efficiency burner system were ideal for solving these issues.
The consultation phase also included:
Reviewing their electrical and gas supply
Evaluating ventilation and exhaust requirements
Mapping their melt‑to‑pour workflow
Identifying safety and compliance requirements for Chicago’s industrial regulations
This ensured the GM‑A330 would integrate seamlessly into their production line.
Engineering Review — Designing the Furnace for Their Operation
After the order was confirmed, our engineering team began customizing the GM‑A330 to match the customer’s exact needs. Although the GM‑A‑BRS Series follows a standardized design philosophy, every installation is tailored to the customer’s workflow.
The engineering phase included:
Thermal and Combustion Design
Burner sizing and placement for optimal heat distribution
Modeling crucible heating curves for copper and brass alloys
Ensuring low‑oxidation melting conditions
Designing the combustion chamber for maximum thermal efficiency
Crucible Selection and Integration
Selecting the correct crucible material for copper alloys
Designing the crucible support system
Ensuring easy crucible replacement and maintenance access
Control System Engineering
Temperature control logic
Over‑temperature protection
Gas safety interlocks
HMI layout for operator simplicity
Mechanical and Structural Design
Furnace shell fabrication drawings
Insulation and refractory specifications
Burner mounting and access points
Exhaust and ventilation integration
The Chicago manufacturer reviewed and approved the engineering package before fabrication began.
Fabrication — Building the GM‑A330 from the Ground Up
With engineering finalized, fabrication began. The GM‑A330 was built in stages:
Furnace Shell Construction
Cutting and forming the steel shell
Welding and structural reinforcement
Installing access doors and inspection ports
Refractory and Insulation Installation
Lining the furnace with high‑temperature refractory
Adding insulation layers for thermal efficiency
Curing and inspecting the refractory

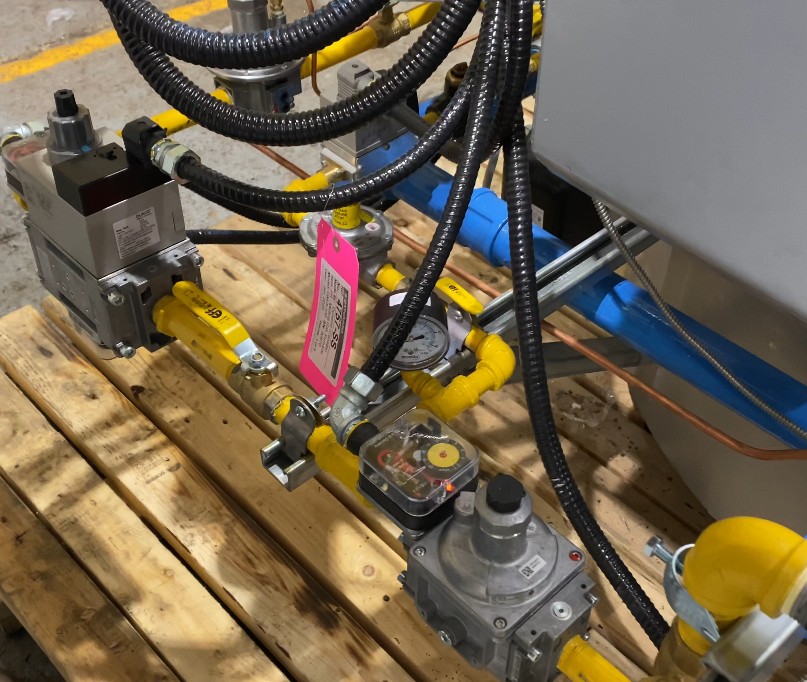

Burner and Gas Train Assembly
Installing the high‑efficiency gas burner
Assembling the gas train with regulators, valves, and safety devices
Pressure testing all gas components

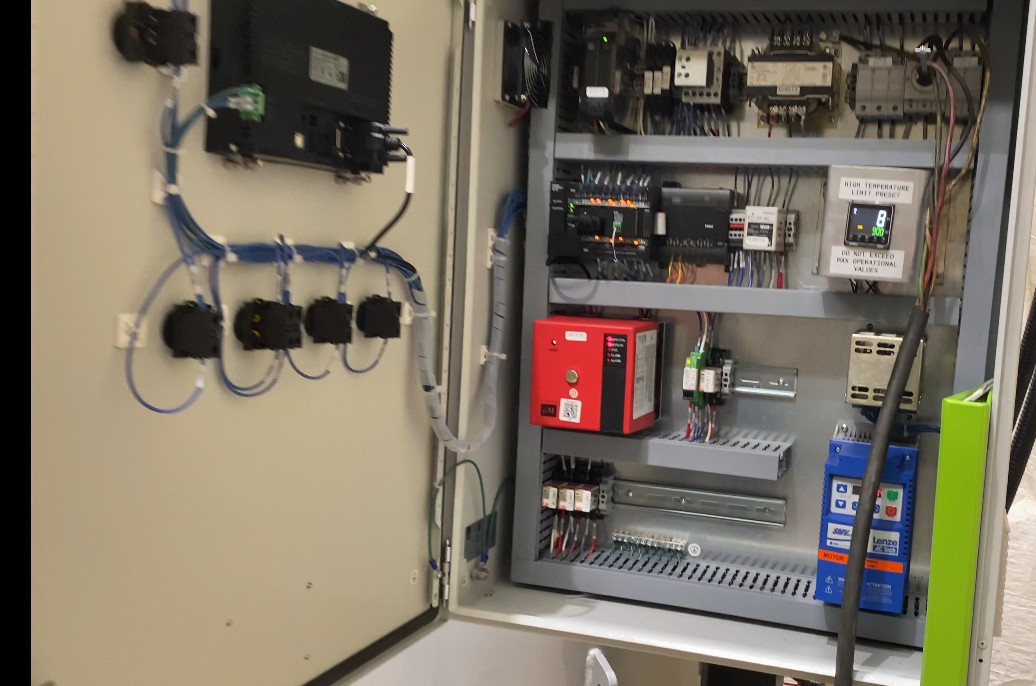

Control Panel Fabrication
Wiring PLC and HMI components
Installing temperature controllers and sensors
Programming safety logic and operational sequences
Crucible Integration
Installing the crucible support system
Verifying alignment and clearance
Preparing the furnace for first heat‑up at the customer site
Each stage underwent quality checks to ensure the furnace met our performance and safety standards.
Assembly — Bringing All Systems Together
Once all components were fabricated, the GM‑A330 moved to final assembly:
The furnace shell, refractory, and burner system were integrated
The control panel was mounted and connected
Sensors, thermocouples, and safety devices were installed
The crucible was seated and aligned
The exhaust system was prepared for on‑site connection
By the end of assembly, the GM‑A330 stood as a fully built copper crucible melting furnace—ready for shipment to Chicago.
Summary
Phase 1 captures the complete journey from the moment the Chicago manufacturer discovered us to the engineering, fabrication, and assembly of their GM‑A330 Copper Crucible Melting Furnace. This phase establishes the foundation for:
Phase 2 — Testing and Pre‑Commissioning
Phase 3 — Shipping, Installation, Commissioning, and First Melts
