The Next Accomplishment: Two Dry-Hearth Aluminum Gas Melting Furnaces Designed & Assembled
Every great partnership begins with trust. In this case, it started when one of our long-time customers referred a new client to Dynamo Furnaces. They had experienced the reliability and performance of our systems firsthand — and knew we could deliver the same level of quality to their partners.
When the new client from Arkansas reached out, they were looking for a durable, high-capacity aluminum gas melting solution that could integrate seamlessly into their existing foundry line. From the very first call, our sales and technical teams listened carefully. They described their production targets, melting schedule, available space, and their expectations for automation, energy efficiency, and safety. Every detail mattered, because at Dynamo, each project is engineered to fit the customer’s exact process — not the other way around.
Every Furnace We Build Is a Solution
Aluminum Melting
From Drawing Board to Assembly Floor
After reviewing their requirements, our technical team proposed two customized GM-D-4400 Dry-Hearth Furnaces, optimized for aerospace-grade aluminum processing. This was achieved by using a specially designed program and hardware solution.
Meanwhile, our automation specialists configured the PLC and HMI to program each control parameter (from temperature limits to alarm sequences) to align with the customer’s process logic. Coordination between mechanical, electrical, and automation departments was seamless, reflecting the collaborative spirit that defines Dynamo’s projects.
Understanding the Customer’s Process: The Foundation of Every Project
- Handle high‑volume melting without disrupting their existing workflow
- Fit within a defined footprint in a busy production area
- Integrate with their current automation infrastructure
- Reduce energy consumption compared to their aging equipment
- Improve operator safety during charging and maintenance
Engineering the Right Solution: Key Features
Once the design phase was complete, the project moved into production. Our fabrication team began assembling the steel structure, installing insulation layers, mounting the burner systems, and wiring the control panels. Every stage underwent rigorous quality checks to ensure accuracy and safety.
Key Features Included:

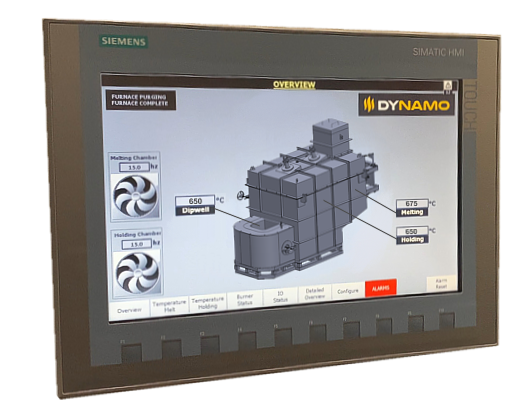

The GM-D Series Dry Hearth furnaces feature state-of-the-art PLC control with large color HMI screens with easy-to-read graphics - all at no extra charge.
Each furnace would offer:
Holding capacity: 4400 lbs (2000 kg)
Melting rate: 1650 lbs/hour (750 kg/hour)
Fuel: Gas
Voltage: 480V (UL certified)
To ensure precise and safe operation, both furnaces were equipped with:
- Allen-Bradley 1769-L33ER PLC and 10” Allen-Bradley HMI
- Low NOx Selas burner for cleaner combustion
- Keyence laser level and sensor for accurate metal level control
- Gas flow metering system for monitoring and efficiency tracking
- Automatic rear charging system for streamlined loading
- VFD drives for energy saving and smooth operation
The dip well height was customized at 36″ (915 mm) to match the client’s crucible and handling setup, ensuring operator comfort and process optimization.
👉 These features make the GM-D-4400 an ideal solution for aluminum melting in foundries, where precision and capacity are critical. For more information about our GM-D Series visit the product page
Engineering a Furnace That Fits the Process

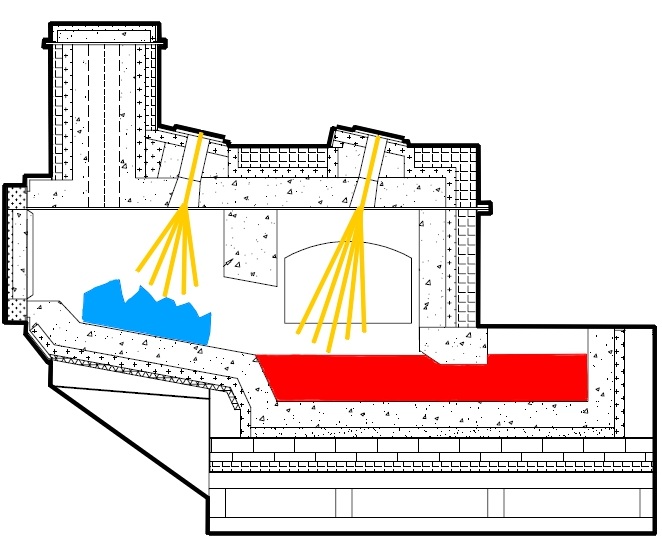

Custom Dry‑Hearth Configuration
The GM‑D‑4400 was selected for its large holding capacity and high melt rate, but the customer needed enhanced control for aerospace‑grade alloys. Our engineers developed:- A customized burner program for stable, low‑turbulence melting
- Optimized hearth geometry to improve scrap melting efficiency
- Refractory and insulation selections tailored for thermal stability
Precision Assembly Backed by Cross‑Department Collaboration
Once the project requirements were fully defined, our engineering team began tailoring the GM‑D‑4400 aluminum melting furnace to perfectly match the customer’s production environment. Every detail—from hearth design and refractory configuration to burner placement and automation parameters—was carefully planned to ensure optimal melt efficiency, temperature stability, and high-purity aluminum output.
With engineering and automation finalized, the project moved into the precision assembly phase. Dynamo’s manufacturing floor is specifically organized to foster close collaboration between mechanical, electrical, and automation teams. This integrated approach ensures that every component of the furnace, from the structure to control systems, fits precisely and functions as designed, reducing errors and preventing production delays.
During assembly, our teams work in a coordinated workflow:
-
Mechanical teams construct the furnace frame, hearth, and refractory system, ensuring durability and thermal efficiency.
-
Electrical teams install wiring, sensors, and safety circuits in compliance with UL standards, supporting reliable and safe operation.
-
Automation specialists integrate PLC hardware, HMI interfaces, and VFDs to provide precise process control, operator-friendly displays, and energy-efficient performance.
-
Quality control verifies alignment, sealing, burner positioning, airflow, and overall furnace integrity, ensuring every GM-D-4400 meets exacting standards before leaving the facility.
This cross-department collaboration eliminates bottlenecks, streamlines the assembly process, and guarantees that each gas-fired aluminum melting furnace is production-ready, energy-efficient, and capable of delivering consistent, high-quality molten aluminum. By combining mechanical expertise, electrical precision, and advanced automation, Dynamo Furnaces ensures every GM-D Series furnace is engineered to optimize melt rates, reduce scrap, and support high-volume aluminum casting in modern foundry operations.
Manufacturing in Motion
Every GM-D-4400 aluminum melting furnace begins with a detailed technical consultation, designed to ensure the furnace perfectly aligns with the customer’s production requirements and casting goals. From the very start, our team evaluates critical factors such as aluminum melting capacity, fuel efficiency, automation integration, and workflow optimization. For this Arkansas-based contract manufacturer, our engineers calculated precise throughput needs, configured burner specifications for consistent high-volume aluminum melting, and selected the ideal dry-hearth design to maximize energy efficiency and melt quality.
Meanwhile, our skilled technicians assembled the furnace structure, installed UL-compliant electrical systems, and integrated advanced PLC and HMI controls to provide precise temperature monitoring, process automation, and operator-friendly functionality. Every GM-D-4400 furnace is engineered for gas-fired aluminum melting, offering fast melt rates, stable temperature control, and high-quality molten aluminum suitable for aerospace, automotive, and industrial casting applications.
With production underway, these aluminum melting furnaces are now in motion, delivering seamless integration into modern foundry and machining workflows. Each furnace ensures consistent metal cleanliness, reduces scrap, minimizes energy consumption, and supports continuous high-volume aluminum production. Our gas-fired dry-hearth design not only improves melt efficiency but also enhances operator safety by reducing exposure to molten metal and controlling thermal shock during charging.
From detailed planning and engineering to precision assembly and rigorous quality testing, every GM-D-4400 aluminum melting furnace is a complete industrial solution. Designed for reliability, performance, and scalability, these high-capacity aluminum melting furnaces are ideal for foundries seeking energy-efficient, high-volume, and fully automated aluminum melting solutions that consistently produce superior melt quality.
Phase 1 Summary: A Partnership Built on Engineering Precision
