Top 10 Furnace Energy-Saving Upgrades with Fast ROI
Introduction
Energy efficiency is now a top operational and environmental priority across the foundry and metal-processing industries. With energy prices fluctuating and sustainability regulations tightening, improving furnace efficiency has become a strategic investment—not just a maintenance decision.
Imagine a busy aluminum foundry: on one side, workers carefully manage standardized ingots, each batch ready to flow seamlessly into downstream processes. On the other, massive sows dominate the workspace, requiring heavy equipment, careful planning, and robust infrastructure to move, remelt, and process. Both approaches serve a purpose—but the right choice depends on your production goals, throughput requirements, alloy variety, and quality expectations.
This article dives deep into the technical, operational, and financial considerations of ingot versus sow casting, helping you align your casting strategy with your foundry’s real-world goals.
👉At Dynamo Furnaces, we design electric resistance crucible furnaces, gas-fired melting units, and custom aluminum holding furnaces engineered to maximize energy utilization. Each upgrade discussed below can dramatically reduce kilowatt-hour or fuel consumption, minimize downtime, and deliver measurable ROI within a few production cycles.

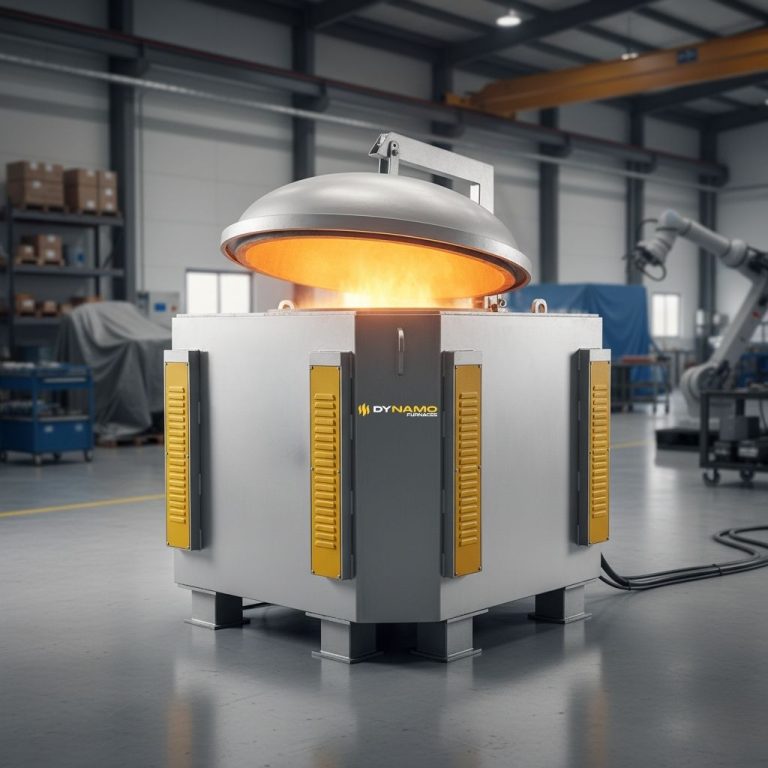

1. Upgrade to High-Efficiency Electric Crucible Furnaces
The efficiency of an older fuel-fired furnace can drop below 75%, largely due to flue gas losses and inconsistent combustion. Replacing it with a modern electric crucible furnace can raise thermal efficiency above 90–95%, since nearly all electrical energy is converted directly into heat.
Why It Matters:
Electric resistance furnaces provide precise temperature control and eliminate the inefficiencies of combustion air handling. They also reduce maintenance costs by removing burner components and exhaust systems.
Technical Insight:
Electric crucible furnaces use heating elements embedded in refractory walls, enabling uniform heating and faster melting cycles. Dynamo’s square crucible series integrates high-grade Kanthal® elements and optimized refractory geometry, cutting heat-up time by up to 25% compared to older designs.
ROI Example:
Switching a 100 kW gas-fired crucible furnace to a 95% efficient electric model can save 10–15 MWh of energy annually—often paying for itself in 2–3 years.
Sow (casting) – A large, often bulky mass of molten metal cast into a form that will be broken down or re‑melted further. Sows often handle very large blocks and are typically used in primary or secondary metal supply chains rather than as final feedstock for highly refined processes.
The distinction between ingot and sow casting matters because the casting size, handling, re‑melting, and downstream processing requirements differ significantly. This choice directly impacts furnace sizing, mold design, cooling strategy, logistics, yield, and quality metrics such as segregation, porosity, and surface finish. Choosing the right furnace supplier is critical, and Dynamo Furnaces has a proven track record of delivering high-efficiency systems tailored to your specific casting requirements.
👉Explore all our products:
2. Optimize Furnace Insulation & Reduce Heat Loss
Even the most advanced furnace loses heat through walls, lids, and openings. These radiative and convective losses can account for up to 20% of total energy input if insulation is degraded.
Technical Insight:
Dynamo furnaces are built with multi-layer refractory design—a dense castable core, secondary insulating bricks, and an outer ceramic fiber blanket. This layered system reduces shell temperatures and increases thermal stability during idle operation.
Data Point:
Every 1 °C rise in external surface temperature corresponds to approximately 1% energy loss. Keeping outer surfaces below 60 °C ensures minimal waste.
ROI Benefit:
Upgrading refractory linings or applying high-efficiency ceramic fiber modules often yields a 1–3 year payback, especially in furnaces that run 24/7.
Sow casting, on the other hand, is often the choice for high-volume, low-alloy-variation foundries. Large blocks reduce per-unit handling costs and allow for efficient mass feedstock production. Sows require heavy handling infrastructure, such as cranes and trolleys, and are better suited for operations where downstream remelting is already integrated. While sows may be less flexible, they are cost-effective for large-scale production runs.
Even the most advanced furnace loses heat through walls, lids, and openings. These radiative and convective losses can account for up to 20% of total energy input if insulation is degraded.
Technical Insight:
Dynamo furnaces are built with multi-layer refractory design—a dense castable core, secondary insulating bricks, and an outer ceramic fiber blanket. This layered system reduces shell temperatures and increases thermal stability during idle operation.
Data Point:
Every 1 °C rise in external surface temperature corresponds to approximately 1% energy loss. Keeping outer surfaces below 60 °C ensures minimal waste.
ROI Benefit:
Upgrading refractory linings or applying high-efficiency ceramic fiber modules often yields a 1–3 year payback, especially in furnaces that run 24/7.
Sow casting, on the other hand, is often the choice for high-volume, low-alloy-variation foundries. Large blocks reduce per-unit handling costs and allow for efficient mass feedstock production. Sows require heavy handling infrastructure, such as cranes and trolleys, and are better suited for operations where downstream remelting is already integrated. While sows may be less flexible, they are cost-effective for large-scale production runs.
3. Install Variable-Speed Combustion Air Blowers (VSDs)
Blowers and fans are among the most power-hungry components in any furnace. Traditional fixed-speed motors operate at full load even when partial airflow would suffice.
Technical Insight:
Installing variable-speed drives (VSDs) or variable-frequency drives (VFDs) allows dynamic adjustment of airflow to match process demand. Reducing fan speed by 20% can cut power use by nearly 50%, due to the cubic relationship between speed and power.
Practical Example:
In aluminum melting furnaces, air/fuel ratio optimization via VSDs minimizes excess oxygen, reducing flue losses and improving heat transfer.
ROI Range:
Initial cost recovery typically occurs within 2–4 years, depending on runtime hours and electricity rates.
👉 Ask Dynamo about integrating VSD control into your combustion systems:
4. Integrate Smart Controls & Process Automation
Advanced control systems are essential for consistent melting quality and energy performance. Manual temperature control often leads to overheating, thermal cycling losses, and idle waste.
Technical Insight:
Dynamo furnaces use digital PID temperature controllers and can be equipped with PLC-based logic for data logging, automated shutoff, and thermal profile management. Predictive control reduces over-temperature conditions and stabilizes melting cycles.
Data Evidence:
Industrial case studies show that smart furnace control systems can save 10–20% of total energy consumption and reduce scrap due to temperature fluctuation.
ROI Period:
Automation systems typically achieve full payback in 2–4 years via energy and maintenance savings.
👉 We have a complete selection of different electric furnaces with high efficiency and suitable for all your requirements
5. Conduct Regular Combustion Tuning & Burner Optimization
For gas-fired or diesel-fired furnaces, incorrect air/fuel ratios lead to significant inefficiency. Each 10% of excess air can cause up to 1% fuel waste.
Technical Insight:
Burner tuning involves optimizing flame geometry, measuring flue gas O₂ levels, and calibrating combustion controls. Proper tuning ensures complete combustion, preventing unburned fuel and lowering stack temperature.
ROI Calculation:
If a furnace consumes $50,000/year in fuel, a 5% efficiency gain from tuning saves $2,500 annually — delivering full ROI in under 12 months.
6. Recover Waste Heat through Flue Gas Recuperation
Heat recovery is one of the most impactful energy-saving strategies for industrial furnaces. A recuperator captures exhaust heat from flue gases and transfers it to incoming combustion air or process materials.
Technical Insight:
A well-designed air-to-air recuperator can raise combustion air temperature from ambient to 300–400 °C, improving overall furnace efficiency by up to 30%.
ROI Range:
Despite moderate upfront costs, the recovered heat often pays for the system in 3–5 years for furnaces running multiple shifts.
👉 Question about integrating heat recovery solutions in new or retrofit projects? We are here to help.
7. Enhance Ductwork, Seals & Refractory Integrity
Over time, expansion, mechanical wear, or corrosion can create leaks in duct joints or cracks in refractories. These seemingly minor issues can cause 3–10% energy loss and increased oxidation of charge material.
Technical Insight:
Infrared thermography can pinpoint high-loss zones. Using high-alumina repair castables or fiber-reinforced seals restores heat containment. Dynamo’s maintenance service includes thermal imaging inspections to assess energy loss points.
ROI:
Refractory refurbishment typically returns full investment within 1–2 years due to recovered efficiency and reduced downtime.
8. Implement Zone Control & Load Matching
In multi-zone systems, uniform operation wastes energy when only partial capacity is needed. Zone control allows each area to operate independently based on process demand.
Technical Insight:
PLC-based logic can deactivate idle zones automatically, reducing total runtime. In holding furnaces, load matching maintains precise temperature while minimizing idle heating.
Case Study Insight:
Foundries adopting zone-based logic have reported 15–20% reduction in annual energy consumption.
9. Preventative Maintenance & Efficiency Auditing
A well-maintained furnace maintains consistent efficiency, while neglected systems degrade rapidly. Issues like dirty elements, damaged thermocouples, or door seal leaks reduce effective heating.
Best Practices:
- Conduct thermographic scans quarterly
- Recalibrate temperature controllers annually
- Inspect refractory and gaskets after every 1,000 operating hours
ROI Insight:
Even a 3% performance recovery from maintenance can yield hundreds of dollars per month in saved energy — often paying back the service cost immediately.
10. Modernize or Switch Fuel Sources
Fuel choice directly affects operating cost and sustainability. Modern systems can combine electric and gas heating (hybrid) or switch fully to electric resistance for precise energy management.
Technical Insight:
Hybrid furnaces operate based on real-time power and gas rates, reducing overall cost per BTU. Transitioning to clean electric systems also cuts emissions and simplifies maintenance.
ROI Potential:
Fuel switching projects often recover cost in 3–6 years, depending on local electricity and gas prices.
Conclusion
Improving furnace energy efficiency is no longer an optional upgrade — it’s a strategic investment in operational sustainability and long-term profitability. Every kilowatt-hour saved directly impacts your bottom line, and modern technologies now make it easier than ever to achieve high performance with reduced power consumption.
The upgrades discussed — from advanced heating elements and digital controls to heat recovery systems and IoT-based monitoring — each contribute to measurable efficiency gains. When implemented together, they can collectively reduce total energy use by up to 40%, extend equipment lifespan, and minimize maintenance costs.
At Dynamo Furnaces, we’ve seen first-hand how even small retrofits can create major returns. A foundry that integrates precision temperature control and improved refractory lining, for example, can experience ROI within six to twelve months, thanks to lower melt times and reduced energy waste. Likewise, transitioning to modern electric crucible furnaces designed with optimized insulation and efficient heating zones can transform your production economics almost immediately.
But beyond the cost savings, these upgrades also enhance process consistency, metal quality, and operator safety — key factors in staying competitive in today’s industrial landscape. Energy-efficient furnaces not only reduce environmental impact but also strengthen your foundry’s reputation for innovation and sustainability.
If your plant still operates older furnace systems, now is the time to evaluate the benefits of modernization. Our team at Dynamo Furnaces provides engineering consultations, customized upgrade paths, and complete furnace solutions tailored to your production capacity, alloy type, and budget.

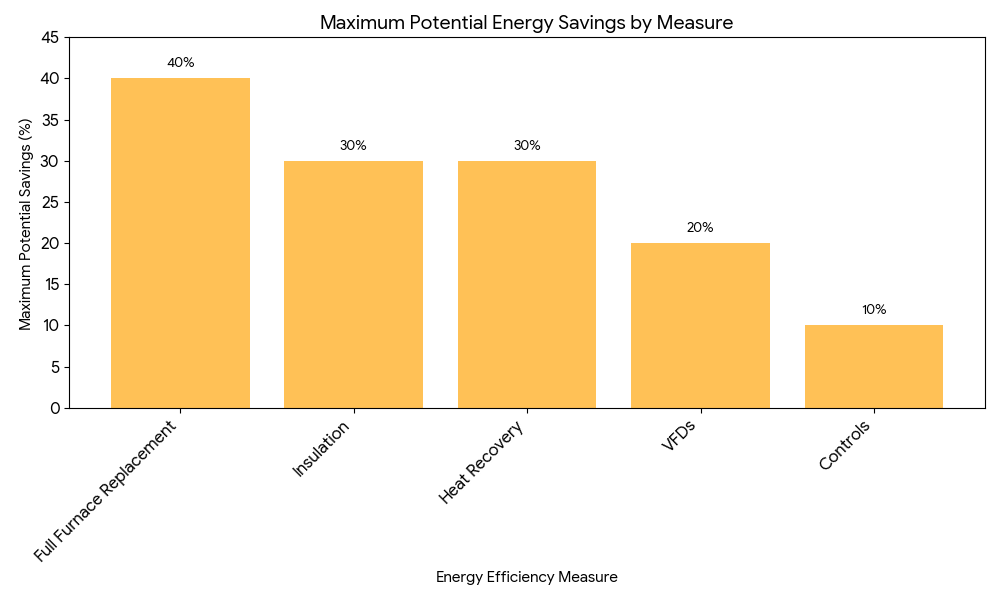

ROI Snapshot: Fast-Payback Furnace Upgrades
Upgrade | Typical Savings | ROI Period |
Electric crucible furnace | 15–25% | 2–4 years |
Insulation upgrade | 10–20% | 1–3 years |
VSD/air control | 5–10% | 2–4 years |
Smart controls | 10–15% | 2–4 years |
Combustion tuning | 5–10% | 1–2 years |
Heat recovery | 15–30% | 3–5 years |
Refractory maintenance | 5–10% | 1–2 years |
Zone control | 10–20% | 2–5 years |
Preventative maintenance | 3–5% | <1 year |
Fuel switching | 10–25% | 3–6 years |
Let Our Products Boost Your ROI
Contact us today to discuss your energy optimization goals — and explore how our different types of melting furnaces can help you achieve higher performance with lower operating costs.
