Aluminum Electric -
Tilting Crucible Melting Furnaces

GM-J-Series-Dynamo-Tilting-Reverbratory-Furnace-Cut-Out-500-x-500

EM-C Series

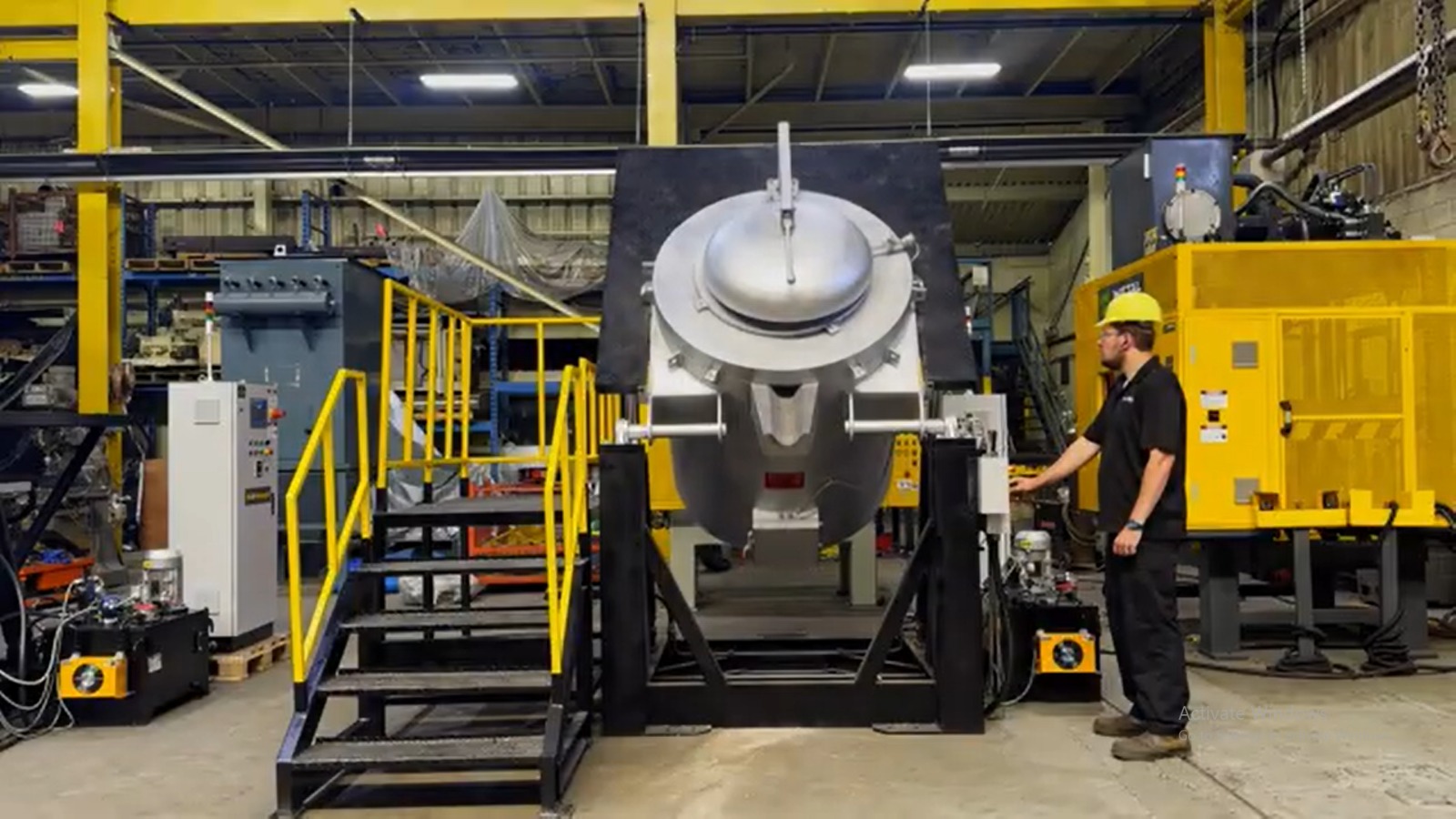

The EM-C Series aluminum electric tilting crucible melting furnace offers the best of both worlds. It is energy efficient and features hydraulic tilting which reduces operator fatigue and increased pouring speed and productivity. The series also features a portable remote controller operator safety and pouring accuracy. A platform with stairs is available as an option. Like all the Dynamo furnaces, the EM-C Series is controlled by a PLC and a color HMI touch screen which optimizes performance and efficiency.
REQUEST MORE INFO
View Sizes
OVERVIEW

VIDEO

See What This Furnace Has to Offer.

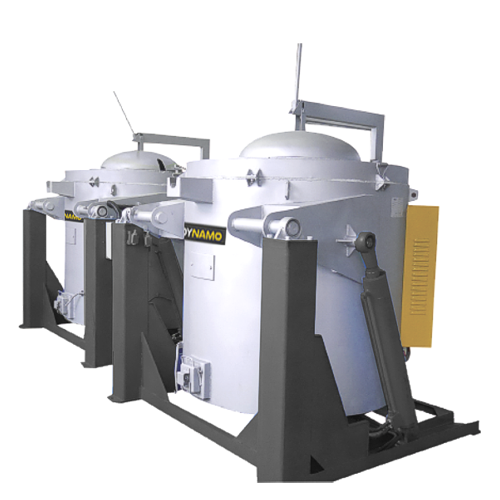

The EM-C Tilting Crucible Furnaces are built solidly, very well insulated, and use only the finest quality components.

GM-J-Series-Dynamo-Tilting-Reverbratory-Furnace-Cut-Out-500-x-500
GM-J-Series-Dynamo-Tilting-Reverbratory-Furnace-Cut-Out-500-x-500
GO CARBON

NEUTRAL

The Furnace of The Future is Here Now.

Carbon is becoming a very big issue globally. Our EM-C Series electric resistance furnaces give you a simple way to go CO2 neutral and actually give you a much better melt due to less turbulence. Plus, this series offers excellent efficiency and uniform melting and holding capabilities, and generally creates less porosity in the alloy being melted than gas furnaces.
HIGHEST RETURN ON

INVESTMENT

We Give You More Furnace For Your Money.

To be competitive today’s economy requires that manufactures run their operations more efficiently and cost effectively than ever before. We offer the highest ROI (return on investment) in the industry. Dynamo gives you high-quality products for a reasonable investment and with more features than any other company. Simply put, we give you the most bang for your buck!
GM-J-Series-Dynamo-Tilting-Reverbratory-Furnace-Cut-Out-500-x-500
GM-J-Series-Dynamo-Tilting-Reverbratory-Furnace-Cut-Out-500-x-500
High Thermal Efficiency

BY DESIGN

We Add Multiple Layers of Insulation.

The result is excellent efficiency which means a furnace which not only burns less gas, but is actually not dangerous to touch.
THICKER

INSULATION

We Add Way More Insulation to Our Furnaces Than Most Manufacturers.

The result is even greater efficiency and a solid, sturdy construction which is hard to beat.
GM-J-Series-Dynamo-Tilting-Reverbratory-Furnace-Cut-Out-500-x-500
dynamo furnaces
HIGH QUALITY

COMPONENTS

We Use Brand Name Components You Know and Already Use.

We use only the finest quality components that are open source and readily available locally in your area, or from our online parts store.

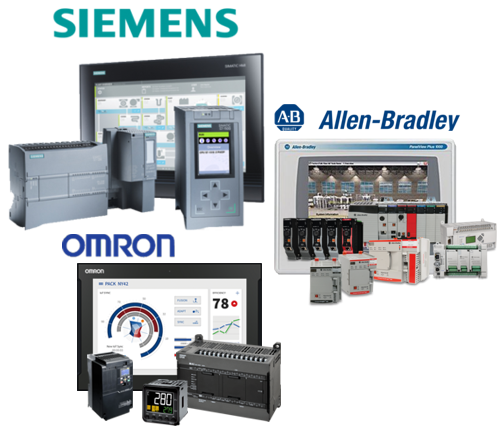

CHOOSE YOUR

CONTROL SYSTEM

We Give You Options of PLC & HMI.

Select the control system that is best for you and easiest for your maintenance team.

dynamo furnaces
dynamo furnaces
REMOTE

OPERATOR PENDANT

Added Safety and Convenience.

With our remote operator pendant which has 8 feet of cable, the operator can stand as close or as far as needed to ensure maximum safety.
HIGH QUALITY

HYDRAULIC POWER PACK

Reliable and Powerful.

Our hydraulic tilting system is can easily handle the weight of a full crucible safely and tilts smoothy without jerking or sudden speed changes which could destabilize the pouring.

dynamo furnaces
dynamo furnaces

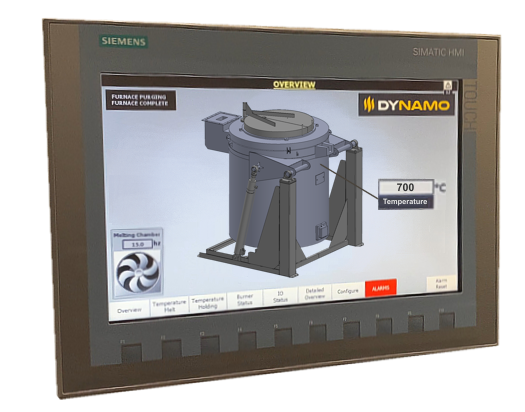

Easy to Operate

INTERFACE

Greater Control - Means Greater Efficiency.

The EM-B Series electric resistance melting furnaces feature state-of-the-art PLC control with large color HMI screens with easy to read graphics - all at no extra charge. See in real time all furnace functions and change any setting on the fly. Now that's control.
REMOTE

SERVICE

We Can Remotely Troubleshoot Your Furnace from Our Facility.

Our GM-B Series tilting crucible melting furnaces include a Remote Connectivity Unit which allows our furnace technicians to remotely check the performance of the furnace, make any needed changes to the program or HMI, or to troubleshoot it directly from our service center. The customer is only required to connect the unit to the Internet via an Ethernet cable. We handle the rest.
dynamo furnaces
dynamo furnaces
INDUSTRY 4.0

REMOTE MONITORING

Remotely Monitor Your Furnace Performance From Any Device.

As an option, all our furnaces are available with Industry 4.0 remote performance monitoring units which feature a custom dashboard. You can not only monitor furnace performance, but you can be notified before an issue occurs. Included are condition based maintenance reminders and shift performance statistics. Minimize impact of emergencies and maximize furnace uptime, and productivity. See what is going on with the furnace and your production from any device, anywhere in the world.
SIX STANDARD

SIZES

Flexible Range of Applications.

Available from a small 330 lbs melting capacity all the way to 990 lbs, the EM-C Series electric resistance dip out melting furnaces allow for a wide range of applications.

REQUEST MORE INFO
ItemUS Standard (Al)Metric Standard (Al)
ModelHoldingMelting/h *HoldingMelting/h *
EM-C-770770 lb330 lb350 kg150 kg
EM-C-11001100 lb440 lb500 kg200 kg
EM-C-17501750 lb660 lb800 kg330 kg
EM-C-22002200 lb880 lb1000 kg400 kg
EM-C-26002600 lb990 lb1200 kg450 kg



* Please Click Here To See A Blog Article About Melting Rates
