Tilting Reverberatory Melting Furnace

Reverb Melting Furnace

GM-J Series

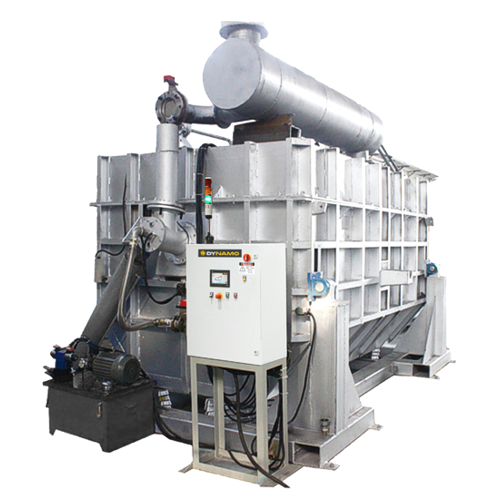

Our GM-J Series aluminum gas reverberatory melting furnace, also known as a reverb furnace, is an excellent choice for large volume melting of scrap and ingots. This series features a hydraulic tilting system and is available with a single large melting chamber, or with a dual melting and holding chamber (recommended). This design can be adapted to your specific requirements. The innovative design offers ultra-high efficiency. Large, electric drive, charging doors allow for easy charging and cleanout access. Like all our Dynamo furnaces, the GM-J Series is controlled by a PLC and a large color HMI touch screen which runs a sophisticated program that optimizes performance, operation, and efficiency.

Request More Info View Sizes

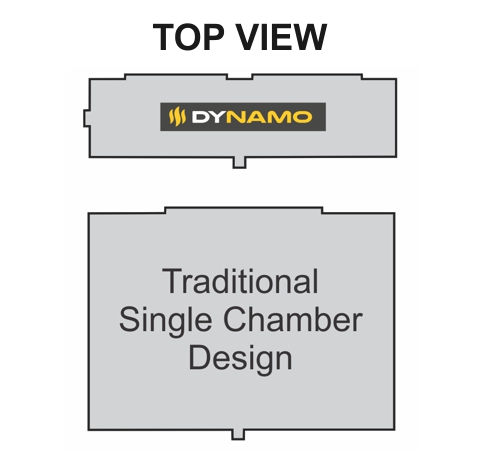

Smaller Footprint

BIGGER MELTING CAPACITY

This Furnace Takes Up Less Space.

Our multi-chamber design dramatically reduces the furnace foot print. By removing a wet bath charging well, and by adding more chambers we increase the melting to holding ratio to approximately 1:3 (even lower for non die casting applications). That means a substantial saving of valuable floor space in your facility and reduced operating cost.

LASER LEVEL

MONITORING

Precise and Dependable Molten Metal Level Measurement.

Probe type molten metal level sensors can corrode and be affected by dross buildup, and in time they can give back false readings. Our laser level system is no contact, precise, dependable, and durable, and offers long term maintenance free operation.

High Thermal Efficiency

BY DESIGN

We Add Multiple Layers of Insulation.

The result is excellent efficiency which means a furnace which not only burns less gas, but is actually not dangerous to touch.

THICKER

INSULATION

We Add Way More Insulation to Our Furnaces Than Most Manufacturers.

The result is even greater efficiency and a solid, sturdy construction which is hard to beat.

CHOOSE YOUR

CONTROL SYSTEM

We Give You Options of PLC & HMI.

Select the control system that is best for you and easiest for your maintenance team.

DUAL AIR

BLOWERS

Two are Better Than One.

Using double air blowers gives us more flexibility and precision in the amount of air available for the melting and holding chambers at any given time. When balanced correctly they increase the efficiency of the furnace and reduce running costs.

VFD DRIVE BLOWER

MOTORS

Better Efficiency and Lower Operating Cost.

Lots of air without control wastes a significant amount of energy. We use VFD Drives combined with Premium Inverter Duty Motors to give you greater RPM only when it is needed. All this translates into greater efficiency, lower operating costs, quieter operation, soft start and longer motor life. The advantage is clear. This is just one of the many ways we use to increase furnace efficiency, and reduce long term operating costs.

HIGH QUALITY

COMPONENTS

We Use Brand Name Components You Know and Already Use.

We use only the finest quality components that are open source and readily available locally in your area, or from our online parts store.

REMOTE

SERVICE

We Can Remotely Troubleshoot Your Furnace from Our Facility.

Our GM-J Series tilting reverberatory melting furnace include a Remote Connectivity Unit which allows our furnace technicians to remotely check the performance of the furnace, make any needed changes to the program or HMI, or to troubleshoot it directly from our service center. The customer is only required to connect the unit to the Internet via an Ethernet cable. We handle the rest.

INDUSTRY 4.0

REMOTE MONITORING

Remotely Monitor Your Furnace Performance From Any Device.

As an option, all our furnaces are available with Industry 4.0 remote performance monitoring units which feature a custom dashboard. You can not only monitor furnace performance, but you can be notified before an issue occurs. Included are condition based maintenance reminders and shift performance statistics. Minimize impact of emergencies and maximize furnace uptime, and productivity. See what is going on with the furnace and your production from any device, anywhere in the world.

Six Standard

SIZES

Flexible Range of Applications.

Available from a smaller 1100 lbs melting per hour all the way to 6600 lbs, the GM-J Series tilting reverbratory melting furnaces allow for a wide range of applications.

Melting Rates Recommended for Ingot Production and Other Non Die Casting Applications

Standard US / Imperial (Al) Metric (Al)
Model Holding Melting/h Holding Melting/h
GM-J-3300 3300 lb 1100 lb 1500 kg 500 kg
GM-J-4400 4400 lb 1650 lb 2000 kg 750 kg
GM-J-5500 5500 lb 2200 lb 2500 kg 1000 kg
GM-J-6600 6600 lb 3300 lb 3000 kg 1500 kg
GM-J-8800 8800 lb 4400 lb 4000 kg 2000 kg
GM-J-13000 13000 lb 6600 lb 6000 kg 3000 kg

Melting Rates Recommended for Die Casting Applications

Standard US / Imperial (Al) Metric (Al)
Model Holding Melting/h Holding Melting/h
GM-J-3300 3300 lb 1100 lb 1500 kg 500 kg
GM-J-4400 4400 lb 1450 lb 2000 kg 660 kg
GM-J-5500 5500 lb 1830 lb 2500 kg 830 kg
GM-J-6600 6600 lb 2200 lb 3000 kg 1000 kg
GM-J-8800 8800 lb 2930 lb 4000 kg 1330 kg
GM-J-13000 13000 lb 4400 lb 6000 kg 2000 kg

DO YOU NEED

BIGGER CAPACITY?

We Can Make a Custom Size For You.

We can make this GM-J Series furnace with up to 55,000 lbs (25,000 kg) capacity.
